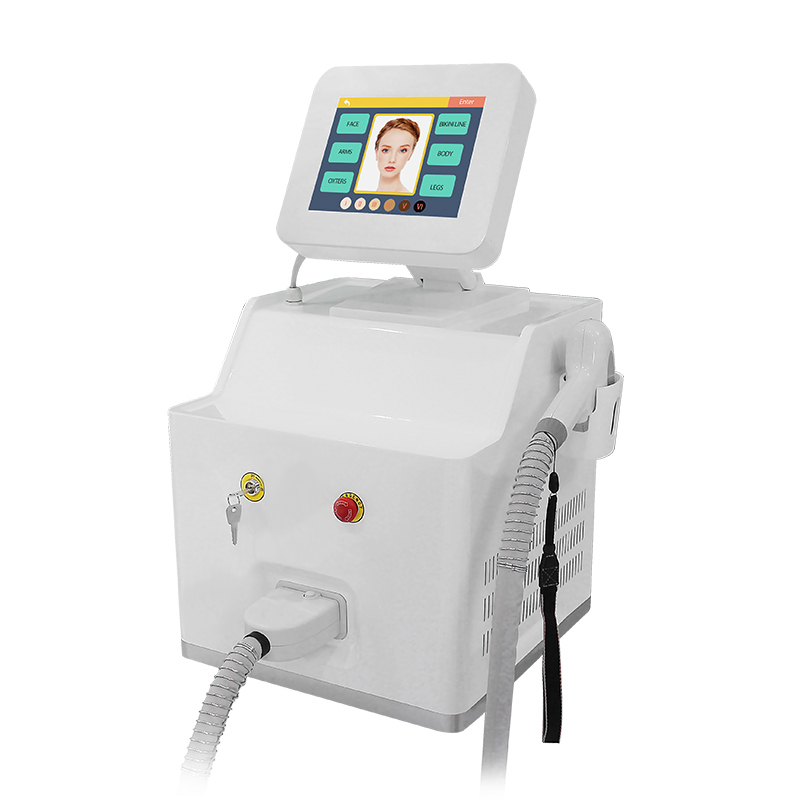

Portable 808nm Diode Laser Hair Removal Machine

Beam quality: Narrow spectral width &Uniform emission & illumination.
Life Span: 100 million can reach,3-5 times longer lifetime than channel diode laser.
3 kinds of power: 600watt/900watt/1200watt power to enhance clinical effect.
Availability:
  • DM-001

  • VCA LASER

Non Channel Vertical cavity surface emitting laser (VCSEL) Laser Hair Removal



1(2)



VCSEL Theory

The vertical cavity surface emitting laser, or VCSEL , is a type of semiconductor laser diode with laser beam emission perpendicular from the top surface, contrary to conventional edge-emitting semiconductor lasers (also in-plane lasers) which emit from surfaces formed by cleaving the individual chip out of a wafer. The System use high-power super-emitting chips as a light source, crystal guide pyramid shaping and transmission of NIR beam, act on subcutaneous, melanin in hair follicle absorb heat



1_595_49958_671_364

VCSEL Advantages

Beam quality:  Narrow spectral width &Uniform emission & illumination

Life Span: 100 million can reach,3-5 times longer lifetime than channel diode laser

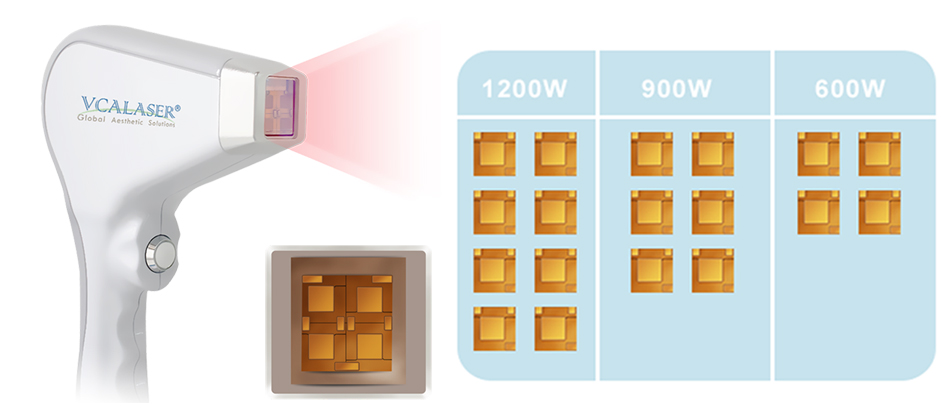

3 kinds of power:600watt/900watt/1200watt power to enhance clinical effect

 4


3 kinds of spot size: 12*12mm² / 20*25mm² / 25*31mm² offer for choice. Squared big spot size could prompt the treatment speed, treatment speed and efficiency. Reduce treatment time for original 1/5

3 wavelength: 808nm & 755nm+808nm+1064nm

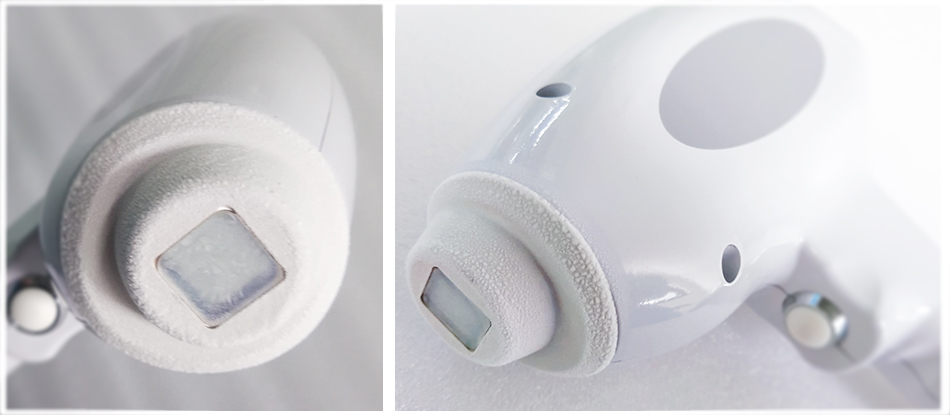

Powerful cooling effect: Real Sapphire contact cooling system,maximum protect epidermis from hurting skin,ensure comfortable experience in whole clinic treatment process





5

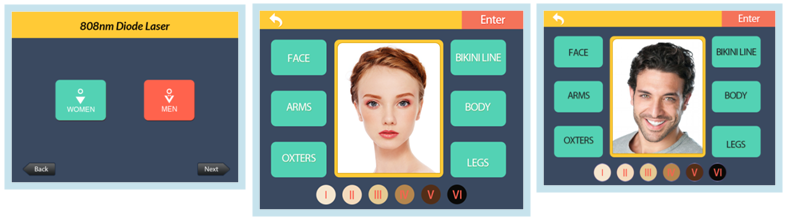

VCSEL Software screen

Parameters for 6 expert skin type: super light, light, yellow, brown, dark,etc

Unique design for man and woman.

Multilanguage software: English, Spanish, etc.

2 work mode: HR(hair removal)  & SR(skin rejuvenation)




VCSEL Parameter



Laser type

Non-channel

 Vertical cavity surface Emitting Laser hair removal

Laser wavelength

808nm

 808nm+755nm+1064nm

Chip type USA bars
  Laser pulse width  5-400ms, adjustable
 Frequency   1-100J/cm²
  Fluence  1-100J/cm²
Display interface  8.4/10.4/12/15/19 inch color touch screen
  Spot size  12*12mm² / 20*25mm² / 25*31mm²
 Output  Power

 600W  (4pcs chips)

 900W  (6pcs chips)

 1200W  (8pcs chips)

Input  Power 2000W
Cooling Semiconductor cooling + water cooling + air cooling
Power supply 110/230V±10%, 60/50Hz




photobank (2)


Guarantee: We offer 3 years free warranty, lifetime maintain, 24 hours calling service.

Service: There is OEM&ODM service for distributor.

Training: After you get the machine, there is user manual, maintain manual, training CD guide you to operate the machine.
