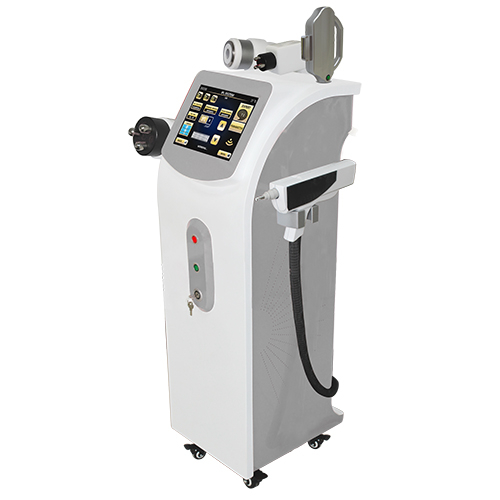

Factory outlet price vacuum E-light+IPL+RF+Nd:YAG Laser+Cavitation body slimming multifunction machine

  • VV50
  • VCA LASER

Factory outlet price vacuum E-light+IPL+RF+Nd:YAG Laser+Cavitation body slimming multifunction machine

opt shr elight ipl rf nd yag laser

How does it work?

Our Elight+IPL+RF+Nd: Yag Laser + Cavitation machine combines 5 advanced technologies.

E-light (IPL): With the impedance difference in skin and pre-heat produced when the skin selectively absorbs optical energy, makes epidermis and dermis different diseased tissue produce light pyrolysis effect. It will largely help to achieve the best treatment result and make the skin tightening,smooth, and fresh!

RF (Radio Frequency) we adopt 1-40Mhz adjustable frequency produces heat when the tissue's electrical resistance converts the electric current to thermal energy deeper within the dermis. Initial collagen denaturation within these thermally modified deep tissues causes the immediate tissue contraction. Subsequent neocoll agenesis then further tightens the dermal tissue and reduces wrinkles.

Laser Tattoo Removal uses theory that the specific wave length (1064nm or 532nm) of laser will be absorbed by specific pigment. The high energy of laser, absorbed by the specific pigment, could cause the pigment to swell and explode, partial fragments of the pigment will be shot out of

the body, and the other pigment fragments will be removed by your body's immune system over a

period of time.

Ultrasound Cavitation process starts with ultrasound waves, which create a bubble in the tissue of the fat cells. The bubble then expands rapidly and compresses,creating a temperature increase and an implosion. With this implosion, the fat cells and cellulite are damaged. Vacuum will bring the gas and vapor on the between skin and treatment head,so it will give a positive pressure on liquid molecule through the expansion cycle on body.

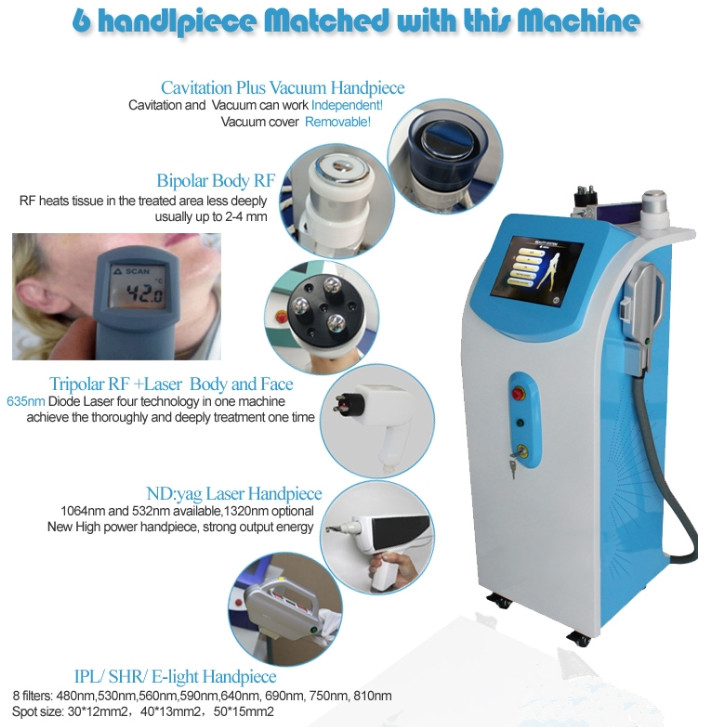

vv50- (6)





Elight Head (RF+IPL)

Filters

Bipolar RF+IPL

Spot size

12X30mm or 12X46mm

IPL Engergy

10~50J/cm2

IPL Wavelength

430/530/560/590/640/690/750nm

RF Energy

1~100J/cm2













IPL Head

Spot size

8*40mm or 15*35mm or 15*50mm

Energy

10~50J/cm2

Pulse duration

1~20ms

Pulse sequence

1~20 pulses

Pulse delay time

1~50ms

Integrated skin cooling

-4~+10°c

Operative interface

12..4 TFT True colour LCD touch screen

IPL Power

2000W

Electrical source

AC110-240V/50-60Hz



RF Head

Unipolar

Option (bipolar or multi polar)

RF Energy

1/10MHz optional



Cavitation Head

Standard

40Khz frequency head

Option

28Khz/80Khz/1MHz frequency

Vacuum

Negative

100Kpa


Application

1. Remove unwanted hair

2. Slimming& Body Shaping

3. Remove tattoo: eyebrow tattoo, eye line, lip line, eyelid tattoo etc.

4. Remove Wrinkles

5. Remove speckles and other pigment problems

6. Skin rejuvenation, pore minimizing

7. Treat blood vessel and telangiectasis

8. Treat acne mark and other scars

9. Remove Freckles, foxiness, coffee, superficial and deeper speckles, age pigment, birthmark, nevus, upper skin splash, Traumatic pigmentation, etc.

Before&After

E-light + NdYAG Laser+lipolaser+RF

Our service

Warranty:We offer 3 years warranty, lifetime maintain, 24 hours calling service.

Training:  User manual, treatment manual, technology manual, training video CD,etc.

Certification: TUV ISO13485, CE, Free Sales, Medic device production licence,etc.

Quality: 80% imported promised best quality.

OEM/ODM: There is mold factory, painting factory for ourselves, fastest and lowest cost price for offer OEM/ODM service. Multilingual arbitrary languages on software.
